Convenient, Dial-A-Dose®, and Posi-Dose®, (multiple measured dose) or single dose options
Controlled dispensing and precision placement of cremes, pastes, fluids, and gels

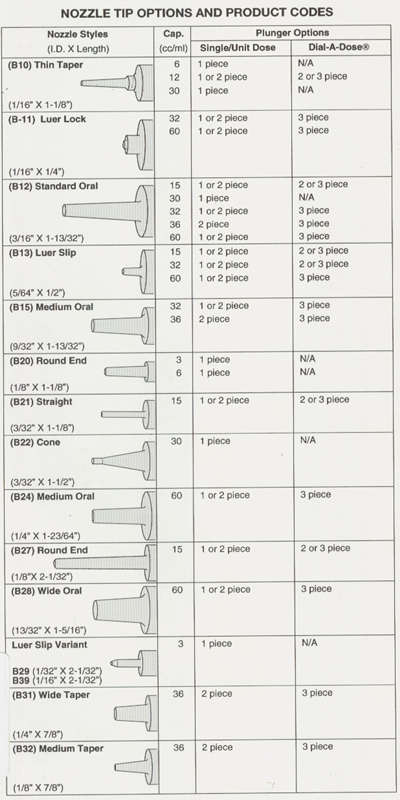

Wide variety of molded-in-place nozzles
Snap-locking, double-seal tip caps
Self venting, zero draft barrels
Available in FDA comforming HDPE or Polypropylene plastics (white, clear, or custom colors available)
Custom calibrations, decorating, and labeling available
Integrally molded, one-piece plungers or two part design with snap on seal for improved compatibility and easier dispensing
Available in 6, 15, 32, 36, 60, and 100cc multiple dose styles or 3 through 100cc single use styles
Dial-A-Dose® Plunger Calibrations
Standard hot-stamped calibrations include the following:
Syringe Capacity Stamp No. Description
15cc/ml #139 0-15 cc's w/1 cc increments
32cc/ml #141 0-30 cc's w/1 cc increments
60cc/ml #140 0-60 cc's w/5 cc increments
100cc/ml #202 0-100 cc's w/5 cc increments
Custom hot stamp calibrations are available for a nominal one-time fee to cover artwork preparation and hardened steel printing plate.
300 ml Veterinary Cartridge System
300 ml all plastic cartridge for economical packaging and controlled dispensing of oral-applied veterinary pastes, and gel preparations
Smooth design to reduce oral tissue trauma
Unique wiper seal provides superior leak-free package even with oily-type compounds
Three-lug base fits into standard bezel type veterinary guns, which can provide measured dosing or rapid delivery of contents
Available in HDPE or Polypropylene (white, clear, or custom colors available)
Barrel labeling and printing available
Short or long nozzle styles available
Snap-Locking, double-seal tip caps are easy to apply and remove and provide superior leakage protection
Special configurations available on request
Markets and Applications:
Nutritional Supplements/ Probiotics
Sterile Infusion Cannula:
Used for intramammary and other dose delivery applications. These all-plastic sterile nozzles are available in bag or strip packaging. Non-sterile cannula are available bulk packaged.
Sterile Plastic Teat Dilators:
Patented design dilator aids in healing of injured teats. Easy inserting and self- lubricating soft plastic reduces the risk of injury or trauma. Individually wrapped and sterile.
Post Production and Custom Services
Assembly of plungers, dosing rings, plunger insertion, and applying caps to nozzle.
Machine or manual application of pre-printed labels to syringe barrels. Specifications for label formatting are available, or we can work directly with our label maker using your artwork.
We can print plungers with the Plas-Pak standard or customer provided graduations.
Custom colors or materials for syringe components are available for production runs of 25,000 sets or more.
Mini Cartridge System
Low-cost, convenient, controlled dispensing system in capacities of 12, 15, 32, 36, 60, and 100cc's
Variety of molded-in-place nozzles for reliable placement of paste and gel compounds
Easy-fill, zero draft barrels are available in clear polypropylene, high or low- density polyethylene, or nylon-6.
Cartridges have secure locking cap closures and all-plastic wiper seals for leak free integrity
Low cost, ratchet style guns for improved mechanical advantage and easier, more controlled dispensing of viscous compounds
Decoration services available
Luer lock nozzle accepts blunt industrial needles or low cost plastic cannula
Assembly options include piston or cap placement to facilitate filling. Filling and plunger insertion equipment available
Markets and Applications
General purpose adhesives, sealants, caulks, and mixed frozens
Grease, lubricants, and thermal conductives
Inks, colorants, and pastes
Silicon fluids; gasket and potting compounds
Solder paste and flux
Automotive sealants and mastics
Maintenance and repair compounds
DIY & Hobby craft high viscosity adhesives
Paste and gel type bait placement
Crack and crevice treatments
Bait station refilling
Adhesives, sealants, cements, paste, and gel compounds
One-part composites and impression materials
Ear mold and impression materials
Single and multiple dose pharmaceuticals and probiotics
Herd dosing and force feeding
Dispensing and filtering of viscous samples
For more information on Dispensing Equipment please call 508-429-6024.
